Inicio /Productos/Máquina eléctrica de recortar/PZ-300 18V/4.0Ah Mm2 Battery Operated Hydraulic Crimping Tool 16 - 300

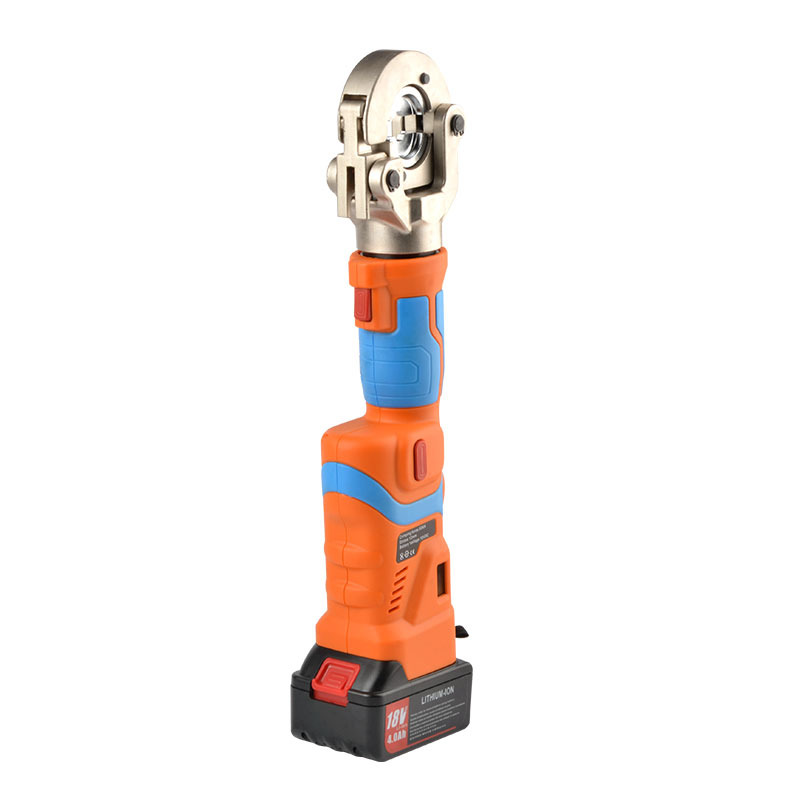

PZ-300 18V/4.0Ah Mm2 Battery Operated Hydraulic Crimping Tool 16 - 300

20 Pieces
MOQ
$480.00(20 - 99 Pieces) $460.00(100 - 499 Pieces) $440.00(>=500 Pieces)
Precio
PZ-300 18V/4.0Ah Mm2 Battery Operated Hydraulic Crimping Tool 16 - 300
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Grade: Industrial
Warranty: 1 year
Customized support: OEM, ODM
Model Number: ES-300
Rated Voltage: 110-220V
Frequency: 50Hz/60Hz
Dimensions: 52X41.3X15.6CM
Weight: 4.6kgs
Power Source: Battery
Model No: ES-300
Crimping force: 60KN
Stroke:: 17mm
Crimping range: Cu 16-300mm²/Al 10-240mm²
Crimping cycle: 6-18s (depend on the size of cable)
Voltage/capacity: 18V/4.0Ah
Package: plastic box
Crimping dies: 16,25,35,50,70,95,120,150,185,240,300mm²
Battery: 2pcs
Charger: 1pc
Información básica
Model Number: ES-300, ES-300
Pago y Envío Términos
Packaging Details: PLASTIC BOX
Supply Ability: 2000 Piece/Pieces per Month
Descripción de producto
Product Overview

Battery powered hydraulic crimping tool

SCHMIED quality: reliable, resilient,efforless.
In electrical engineering, safety comes first. That's why we rely on the highest quality in our tools and connection technology.
Our battery-powered hydraulic tools can do much more than simply cutting, pressing and punching. The tools are as light as possible and have the perfect weight distribution to support occupational health.
FEATURES AT A GLANCE
* Closed head, flip top style, rotatable
* Quality assurance via visual and audible signals in case of error
* Simple and safe: one-button operating concept for controlling all tool functions
* Effortless operations thanks to low weight
* LED for work area illumination
* Simple and safe: automatic retraction when operation is complete
* Always ready-to-use thanks to battery charge and service display

TOOL
ERGONOMIC DESIGN
4.0 Ah LI-ION BATTERY
PRODUCT SPECIFICATIONS
Model No:
ES-300
Crimping force:
60KN
Stroke:
17mm
Crimp/charge:
120 times(Cu 150mm2)
Crimping range:
Cu 300mm²/Al 240mm²
Crimping cycle:
3-6s (depend on the size of cable)
Voltage/capacity:
18V/4.0Ah
Charging time:
50 mins
Package:
plastic box
Ambient temperature
-10～40℃
ACCESSORIES
Crimping dies
16,25,35,50,70,95,120,150,185,240,300mm²
Battery:
2pcs
Charger:
1pc
Cylinder seal ring:
1set
Safety valve seal ring:
1set
FAQ
Q1: Is the whole working procedure finished by your workshop?
A1:90% procedures are finished in our workshop,so we can control strictly the quality of components and finished products.Surface color treatment is done outside but we check each batch incoming materials.

Q2: What kind of payment term do you accept?
A2: We accept TT, LC, and D/P

Q3: What is your delivery time?
A3: It depends on your order. Normally 3-7days for samples.30-45days for standard. 30-60 days for customized.

Q4:How do you guarantee your quality?
A4: Firstly, we do quality test during every process . We produce most components by ourselves, it is started from cutting raw material, machining roughly in the first step, casting ,forging , punching, heat treatment, finish machining, painting, assembly and finally packing. We will spot check for each step.Secondly, we will collect all comments on our products from customers in time and try our best to improving quality all the time.

Q5:What's your warranty time?
A5: The warranty time is 1 year.

Q6:Can you provide OEM service and have our own logo on products?
A6: Yes,we work on OEM orders.That's ok to have your logo on the products.Please contact us with details before placing order.

Q7:How about the packing and shipping.
A7: Normally,we have plastic carring case,carton and pallet for packaging.If you have any other special requirments,please feel free to let us know.
